The heart of the system is a Vacuum Producer of Single or Multi-Stages, Side Channel or Positive Displacement Construction. In front of it is a separator that removes solid material from the air stream created by the vacuum producer. Typically, there are two ways to configure:-
House Keeping Vacuum System
Central Vacuum Sources

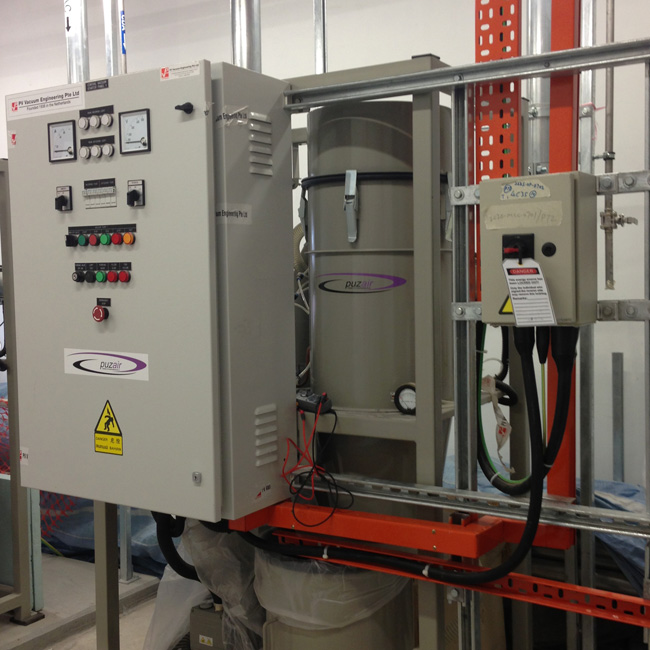

Modular Construction: This is the most compact approach, which allow for progressive expansion of the system. The separator* and the vacuum producer are packaged into a single assembly. Standard Package for One Cleaner to Thirty Cleaners Package is available.
Modular Package
Modular Package

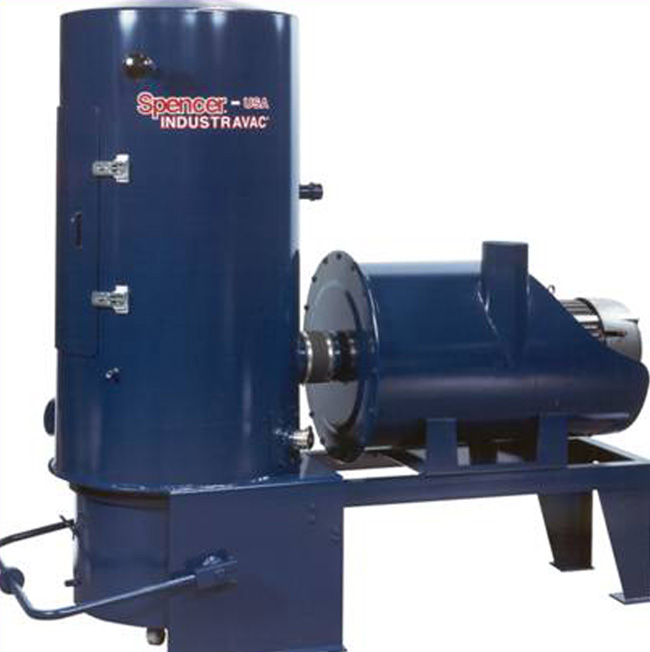

Knock-Down Version: This is usually used when the system is bigger or the material pick-up is more difficult to manage. The separator* and the vacuum producer are on separate skid and they are interconnected via piping. One or two separators* could be connected in line to separate product of different nature, such as Liquid and Fine Dust.

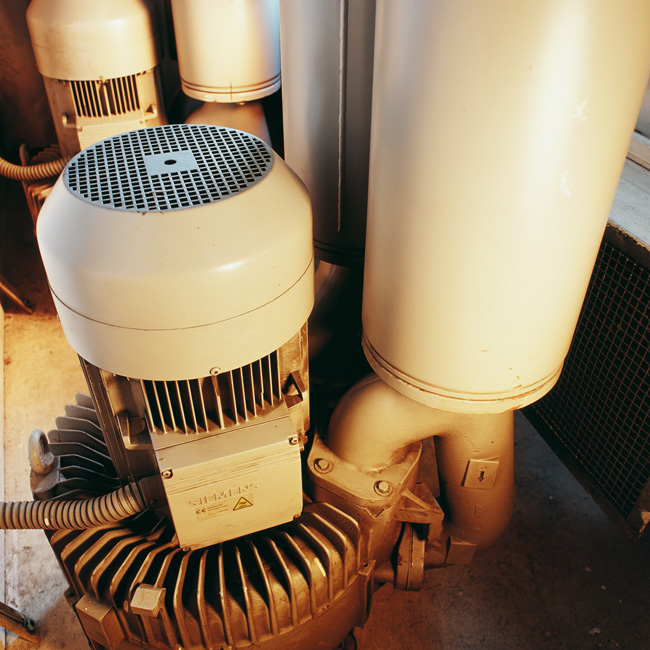

Vacuum Exhauster

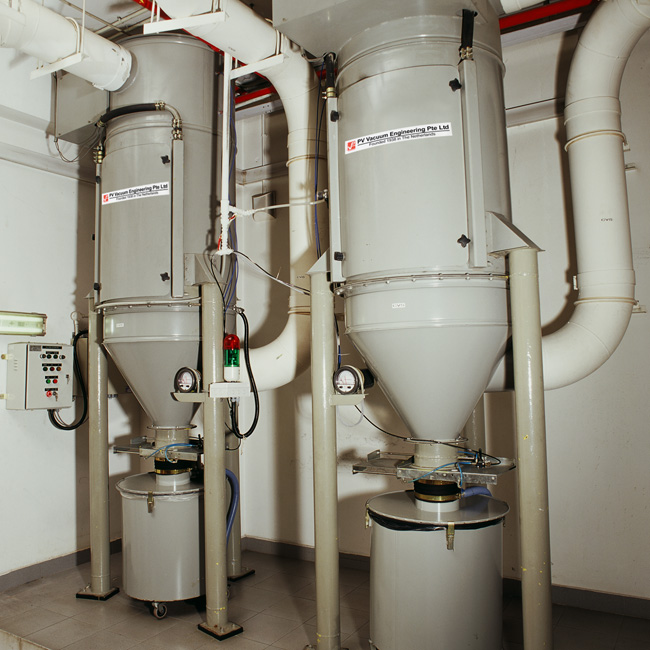

Filter System
* We make ten basic separators all with tangential intake design for superior separation. They are Centrifugal Seperator, High efficiency Centrifugal Separator, Tubular bag Separator, Storage Compartment Separator, Jet Clean Separator, Reverse Flush Separator, Wet Separator, Immersion Separator, Portable Wet - Pick Up, Top Hat Separator and Cartridge Separator.
